Introduction

PIR is a passive infrared detector or physical sensor. When the PIR is triggered, PIR will send message to the App. It could also trigger other devices like light, home application, siren and so on. The PIR is battery powered, is small and can be installed easily.

Parameters

1. Model: COL-PR03W

2.Power supply :Solar Charging Lithium Battery 3.7V 500mAh

3.Standby Current: 50μA

4.Alarm Current: 100mA

5.Sound intensity:120 dB

6.Alarm Type:Sound & Flash Alarming

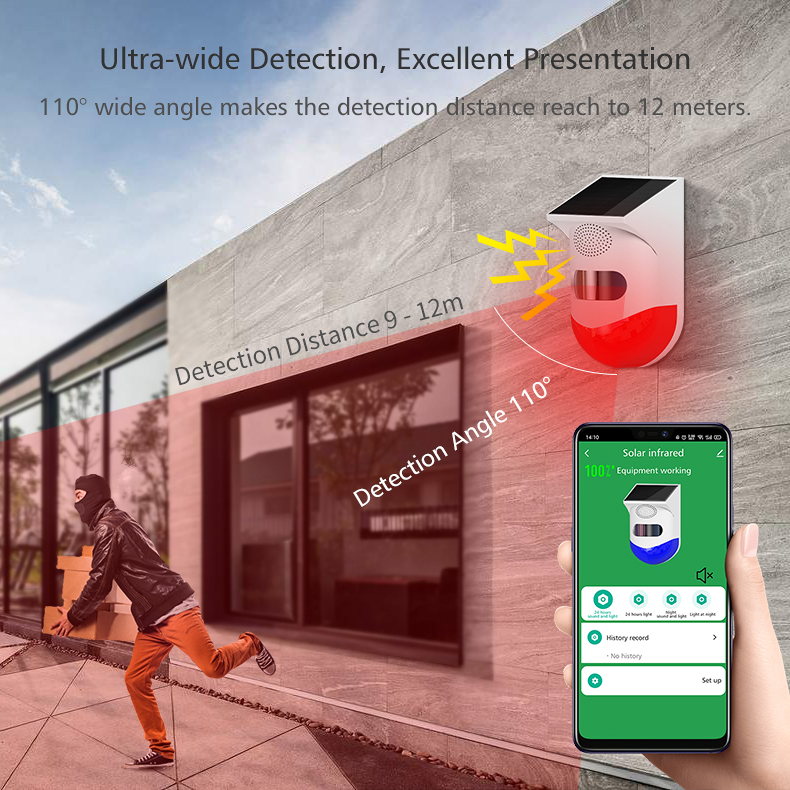

7.Sensitive Distance: max 9~12m

8.Sensitive Range:Max. 110°

9.Waterproof: IP67

10.Product size(L*W*H): 76 x 65 x 135mm

11.Siren could only be triggered by build in PIR
